Case studies: Equipment for manufacturing medicinal products


Customer Customer

AVVA Pharmaceuticals AG is a major pharmaceutical company operating in over 40 countries worldwide. They have over 25 years’ experience in the pharmaceutical industry.

The customer is continuously growing and needed to expand one of their production plants.

AVVA PHARMACEUTICALS

Project Project

They needed a fully automatic and very complex production plant for liquid pharmaceutical formulations (syrups and suspensions) that could be used for manufacturing a certain product while being cleaned and prepared for manufacturing another product at the same time.

The plant had to be connected to three different filling lines. The suspensions also required recirculation during the process to avoid solid particle sedimentation. It had to be equipped with a CIP system and SCADA.

Equipment for manufacturing medicinal products
  • Equipment for manufacturing medicinal products
  • Equipment for manufacturing medicinal products
  • Equipment for manufacturing medicinal products
  • Equipment for manufacturing medicinal products

The visit to the INOXPA head office and a trusted customer’s installations really helped decide on the solution.

  • Equipment for manufacturing medicinal products
  • Equipment for manufacturing medicinal products
  • Equipment for manufacturing medicinal products
  • Equipment for manufacturing medicinal products

The visit to the INOXPA head office and a trusted customer’s installations really helped decide on the solution.

Why INOXPA? Why INOXPA?

The possibility of visiting the INOXPA head office in Banyoles, the factory and the pilot plant was a major factor in their decision to work with us.

The visit to the CINFA plant (one of the most important pharmaceutical companies in Spain) - where we recently installed our equipment - also proved very decisive.


INOXPA solution INOXPA solution

INOXPA installed equipment in various areas given the different production process needs.

Installation characteristics Installation characteristics

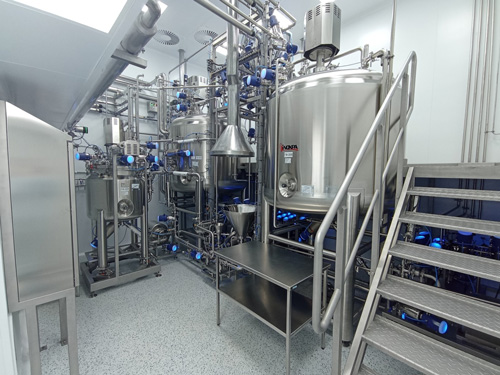

The following equipment was installed in one area:

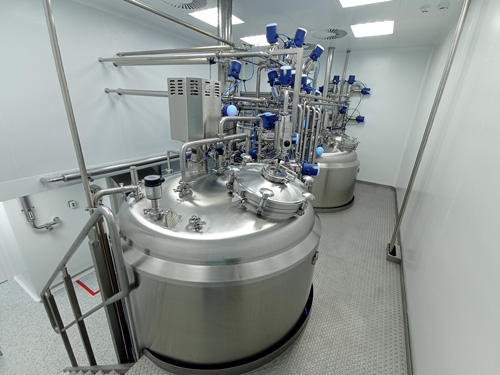

  • two 2400 L tanks (one for preparation and one for storage);

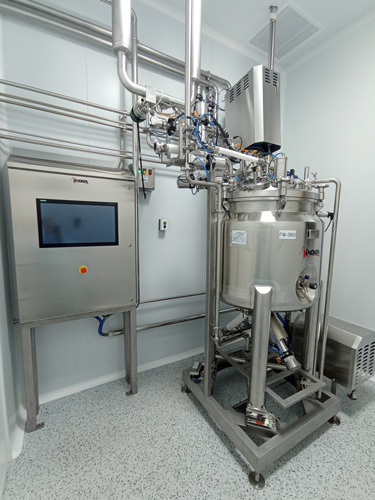

  • a 250 L tank (for preparing APIs and small batches);
  • two manifolds (connecting the plant with three filling lines and the CIP system);
  • a blender
  • pumps.

A 250 L tank (for preparing APIs and small batches) was installed in an ATEX zone where explosive ingredients are used.

A CIP unit and cooling and heating stations for the reactors were installed in the technical zone.

The SCADA system is based on WinCC Professional with five thin clients.

Special features Special features

  • The installed system with manifolds enables the manufacture of different product types while performing CIP cleaning at the same time. As such, the system was highly complex, so the interface was developed to make it as intuitive as possible and easier to use.
  • The large tanks are equipped with magnetic agitators that help keep the suspension homogeneous during the final production stage.

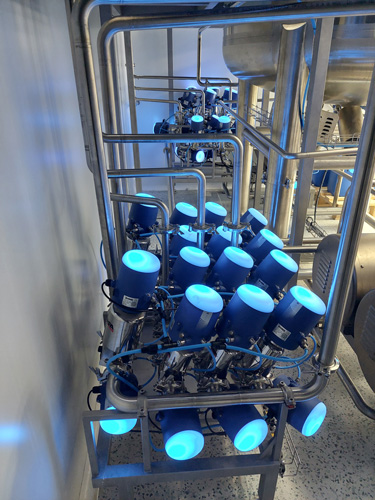

  • The diaphragm valve manifolds used the mixproof model and each unit was created with three valves to detect any potential leaks.
